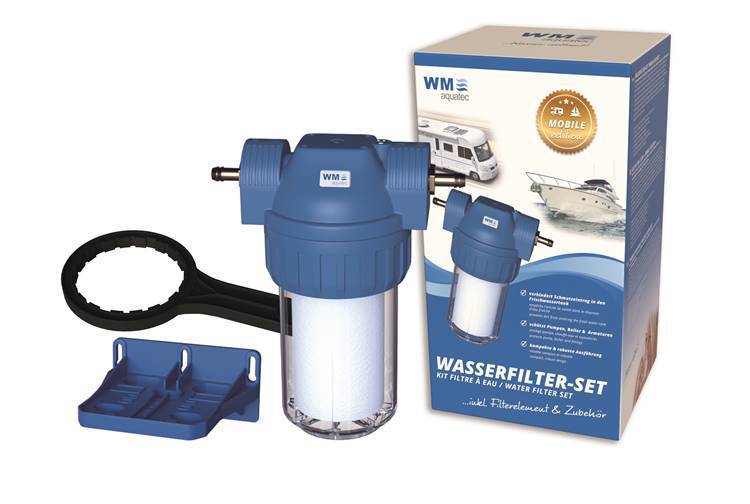

Water Filter Set “Mobile Edition”

£35.39

Pre-assembled, three-part filter housing including PP filter element suitable for drinking water. The three-part construction allows a quick and easy change of the filter elements. In addition, the housing is equipped with a vent valve. The retention of rust, sand or other contaminants in the water is effectively prevented by being filtered out and you are thus guaranteed a better water quality. Whether for filling the fresh water tank (mobile use) or for permanent installation in motorhomes, caravans and boats with the mounting bracket included : The “Mobile Edition” water filter set also protects pumps, boilers, and fittings from contaminants in the water and increases their service life.

Category:

Description

Water Filter Set “Mobile Edition”

Pre-assembled, three-part filter housing including PP filter element suitable for drinking water. The three-part construction allows a quick and easy change of the filter elements. In addition, the housing is equipped with a vent valve. The retention of rust, sand or other contaminants in the water is effectively prevented by being filtered out and you are thus guaranteed a better water quality. Whether for filling the fresh water tank (mobile use) or for permanent installation in motorhomes, caravans and boats with the mounting bracket included : The “Mobile Edition” water filter set also protects pumps, boilers, and fittings from contaminants in the water and increases their service life.
  • prevents dirt from entering the fresh water tank
  • protects pump, boiler and fittings
  • filtration rating: 1 micrometer (0.001 mm)
  • mobile and stationary use
  • quick and easy filter change
  • Can be changed for an activated carbon cartridge for even better filtration.
  • includes mounting bracket and filter key
  • compact, robust design

Technical Specifications:

  • Dimensions (height x diameter): 190mm x 120mm
  • Connections: 2x ½” internal thread, 2x hose nozzle 13mm (not pre-assembled)
  • Flow rate*: 15 l/min (at 0.08 bar)
  • Pressure: max. 6 bar
  • Water temperature: +2… +23°C (at 6 bar)
  • Housing material: PET
  • Filter head material and closure ring: PP
  • O-ring material: NBR
  • Material hose nozzle: nickel-plated brass
  • Width across flats, hose nozzle: 25mm

* depending on the filter medium used and the raw water quality
